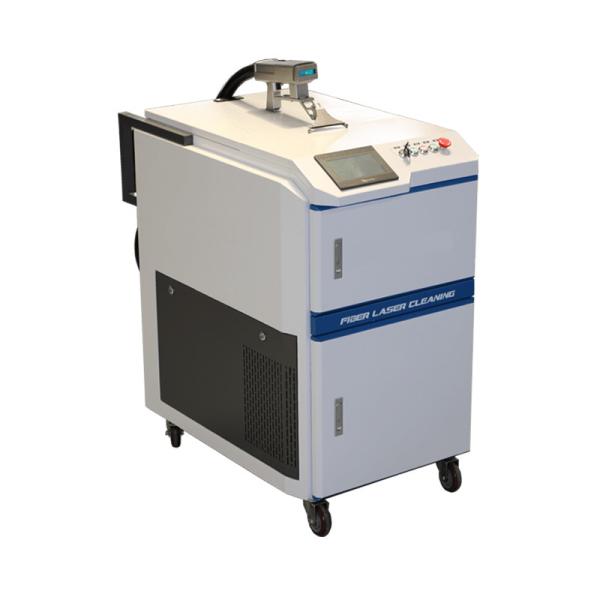

Fiber Laser Cleaning Machine For Rust Removal
Laser Cleaning Machine System with 200W to 2000W
Removal Rust,Dust Paint and Oil
Fast Scan Speed Removal
Easy to Operate
PRODUCT DESCRIPTION
Laser cleaning equipment is a new generation of surface treatment
high-tech products, which are easy to install, operate and realize
automation. The operation is simple, the power is turned on, and
the equipment is turned on, you can clean without chemicals, media,
and water. The focus can be manually adjusted, and the surface can
be cleaned. The cleaning surface has high cleanliness and can
remove resin, paint, and oil on the surface , Stains, dirt, rust,
coating, plating and oxide layer, and the industry is widely used,
covering ships, auto repair, rubber molds, high-end machine tools,
rails, and environmental protection.
Laser cleaning technology refers to the use of high-energy laser
beams to irradiate the surface of the workpiece to cause the dirt,
rust or coating on the surface to evaporate or peel
instantaneously, and effectively remove the adhesion or surface
coating on the surface of the cleaning object at a high speed, so
as to achieve a clean process. It is a new technology based on the
interaction effect of laser and matter.
Technical characteristics
High cleanliness
Can be accurately positioned and cleaned
Non-contact cleaning to protect the surface of brittle materials
Effectively remove micron-level pollution particles
Environmental protection, no consumables required
Why are more manufacturers using laser cleaning for material
preparation?
Laser cleaning offers multiple advantages over traditional
approaches. It does not involve solvents and there is no abrasive
material to be handled and disposed of. Compared with other
processes that are less detailed, and frequently manual processes,
laser cleaning is controllable and can be applied only to specific
areas of a part, can be easily automated to maximize productivity,
and provides the guaranteed repeatability demanded by an increasing
number of quality standards.
Laser Cleaning Machine System
Lasers can provide high-speed cleaning and surface preparation in
virtually all industries. The low-maintenance, easily automated
process can be used to remove oil and grease, strip paint or
coatings, or modify surface texture, for example adding roughness
to increase adhesion.
No abrasive materials are used, with no problems of contaminant
separation and disposal
No solvents are used - chemical-free and environmentally friendly
process
Spatially selective – cleaning only the area required, saving time
and costs by ignoring regions that don’t matter
Non-contact process never degrades in quality
Easily automated process that can lower operating costs by
eliminating labor while giving greater consistency in results.
Parameters:
| Laser power | 200W / 300W / 500W /1000W /1500W /2000W |
| Laser type | fiber technology |
| Laser wavelength | 1064±5nm |
| Laser energy | 12.5 mJ |
| Maximum peak power | 96 kw |
| Frequency | 25-50 KHz |
| Power adjustment range | 10 to 100% adjustable |
| Laser source type | QCW / CW |
| Fiber core | 100 μm |
| Focus distance | 100 /160 mm |
| Working temperature | 0℃～40℃ |
| Place the environment | Flat, no vibration, no impact |
| Whole machine power consumption | 3200W |
| Move method | handheld |
| Clean head weight | 3.0kg |
| Scan width | 10 to 80mm |
| Pulse width (ns) | 130-160ns |
| Cooling syste | Water chiller |
| Machine size | 1100mm×700mm×1150mm |
| Machine weight | 290 kg |
